***Sold Out! More components are on their way and Preorders are available, expect shipment in May!***
Purchase together and save!

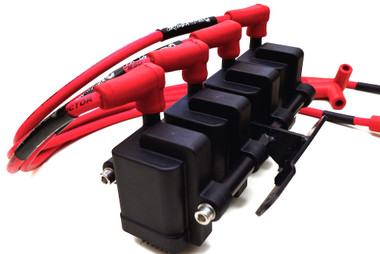

The IGN-1A Smart coils are a must have for high horsepower FD's. Originally designed great alternative to the factory coils and HKS twin power combination. The issue most will face when upgrading to the marine coils is wiring them up and finding a location to mount them. We have designed a complete package for anyone looking for a completely bolt on mounting solution.
IGN-1A Smart Ignition coils
Designed for two-stroke marine engines requiring lots of spark, these coils can not be beat for the rotary! Rotary and two-stroke motors behave very similarly with twice the ignition events per revolution compared to a standard 4 stroke motor (which more coils are designed for).
CDI-Level spark energy without a CDI make these IGN-1A Ignition Coils a must for boosted, high RPM, high compression and nitrous-equipped vehicles! The tradeoff between adequate spark energy and adequate spark duration ends with the IGN-1A High-Output Inductive Coils, the first inductive coils that deliver CDI-like spark energy and voltage, and a long spark duration necessary for vehicles running high compression, high rpm, forced induction and/or nitrous engines.
The IGN-1A High-Output Inductive Coils each deliver over 100mJ of spark energy and a minimum of 40,000 Volts - as much as most CDI systems, without the need for a CDI module! They also provide very long spark duration at full energy, unlike CDI systems and multiple spark systems which fire off small spark events prior to and after their CDI burst to mimic longer spark direction.
With our coil upgrade package IGN-1A High-Output coils easily install in place of your existing coils. They are constructed to operate in harsh environments and are shock and weatherproof allowing them to be mounted virtually anywhere. The High Output coils cost less than the cost of aftermarket LS1 coils and deliver World Class performance. They are currently running on 2,000 horsepower nitrous motors without a CDI, and the perform flawlessly.
The mount we have designed, places the coils next to the brake master cylinder where the cruise control would reside (removal of cruise control required). As with most of our products the mount is completely bolt on and easily removable requiring no permanent modifications. It allows direct access to change plug wires, and as a side benefit you can remove your old coils from under the UIM.
To compliment the mount we are also offering accompanying MSD SuperConductor Spark plug wires, for a true plug-and-play coil solution! to round out our package we offer custom made MSD spark plug wires specifically to work with our mounting solution (Custom lengths also available). Whether your car is stock or a 500HP monster these wires will suit your needs and meet or exceed your expectations. Our spark plug wires utilize MSD 8.5mm super conductor wires and the highest quality connectors and boots. MSD's 8.5mm Super Conductor wire sets feature a proprietary helically-wound core that has just 40-50 ohms of resistance per foot--but with an EMI/RFI suppression equal to a 1,500 ohm wire! What's that mean? More energy from your coils make it to your spark plug wires which would otherwise be converted to heat in a standard wire. Less resistance means less energy converted to heating the wire, resulting in a stronger spark and longer wire life. These are the best wires money can buy!
We stand behind these wires and individually test and record the ohm rating of each of your plug wires. Not only does this allow you to see the difference in your own wires compared to the others on the market, but also gives you a base-line reading to track the life of your wires over time.
