Universal Mounting System (For IGN-1A Smart Coils)

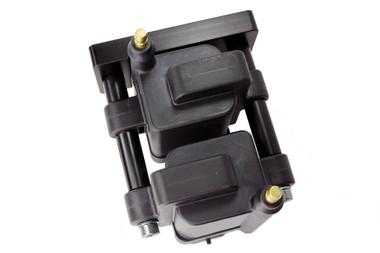

The SBG IGN-1A Smart Ignition Coil Mount was developed to allow convenient mounting of sets of two (2) SBG (West Marine/AEM) IGN-1A Smart Ignition Coils coils in multiple space-saving configurations and orientations.

The coils mounts are modular in design allowing them to be mounted individually or bolted together (back to back, side to side, or both).  Two (2) coils can be attached to each mount and mounts inter-connect in various ways to aid in placement of coils for custom applications.  They can be mounted flat to a surface such as a firewall by inserting a bolt directly through the front of the mount.  The can also be side mounted using threaded attachment points on the side of each coil mount along with a bent sheet metal bracket to suit your application.  The mounts can be bolted back-to-back and a sheet metal bracket used to mount them in a row, or for v8 applications a “block” of 8 coils can be created…  The mounting possibilities are endless.

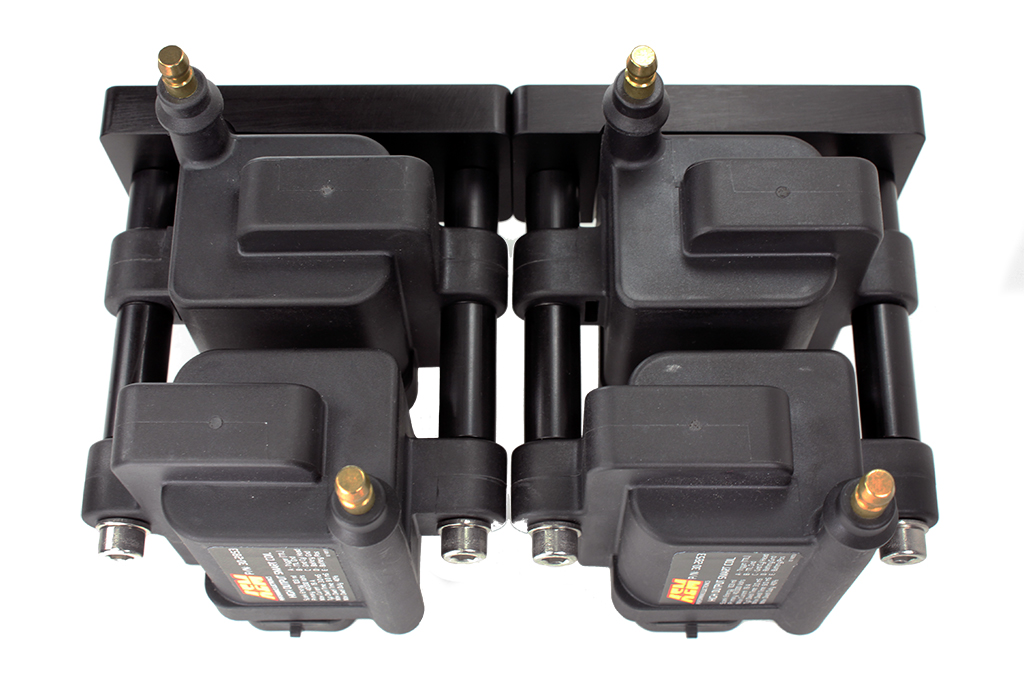

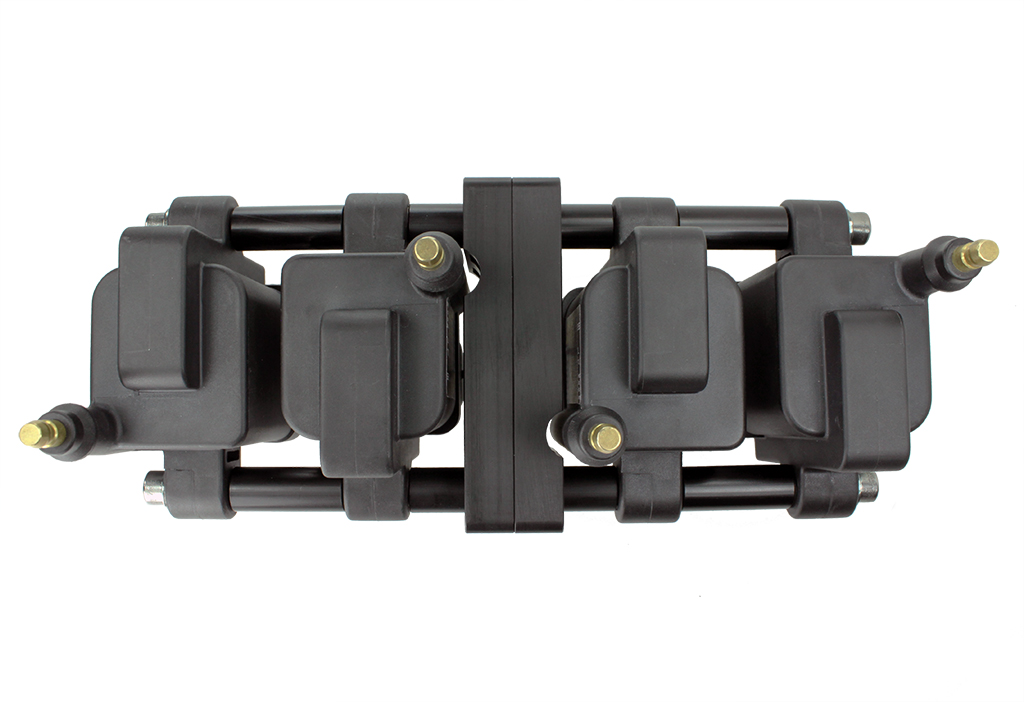

Below are some examples of potential multiple-bracket mounting methods:

All coil mounts are CNC'd from billet 6061 Aluminum.  Some mounts are pictured in raw aluminum, but all mounts will be delivered in a durable mil-spec hard anodized black finish.  They include mounting hardware to attach the coils to each other (either back to back or side to side), along with spacers to attach multiple coils to each bracket.  Finalized mounting provisions are left to the user, either mounting through the coils to a flat surface directly, or using a sheet metal or other style back or side mount depending on orientation.

Potential applications include:

• 2 Cylinder / Individual Mounting
• 4 Cylinder / 2 Rotor (side-by-side, back-to-back)
• 6 Cylinder/ 3 rotor (side-by-side, back-to-back)
• 8 Cylinder/ 4 rotor ((side-by-side, back-to-back, or in one block)
• v10/v12+

WE ALSO OFFER:

• Plug-and-Play mil-spec coil wiring harness for FD RX-7, RX-8, and Mazda Miata - OR - Flying lead mil-spec coil wiring harnesses for applications from 4-10+ coils.
  The only connections you will need to make are signal wires for the coils.



• Custom spark plug wires per your application:



• SBG IGN-1A Smart Ignition Coils - in all of their big spark fast recharge time glory
