Mazda Motorsports ZE40 Forged Wheels

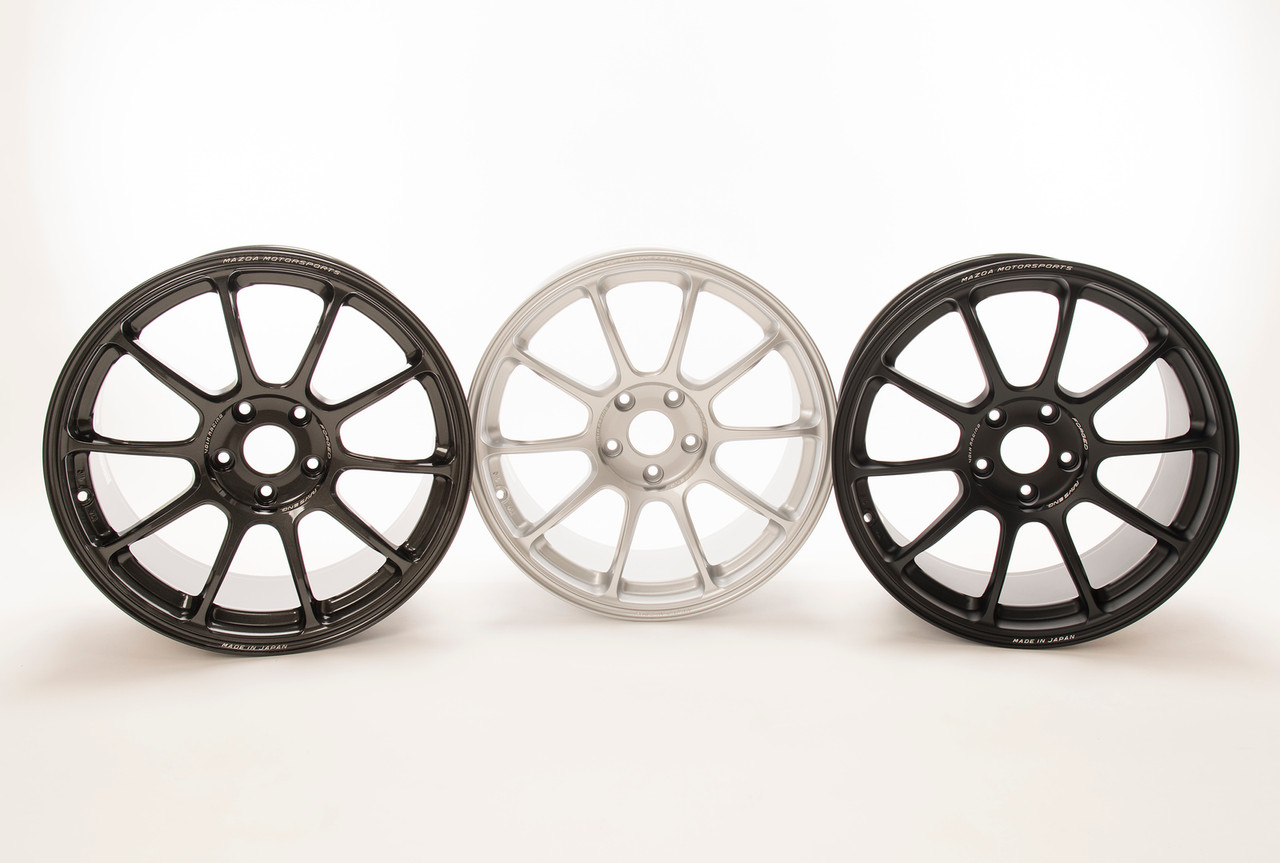

Sakebomb Garage is proud to be the EXCLUSIVE distributor for the Mazda Motorsports x Rays ZE40 for the FD RX-7. With every opportunity possible, Mazda Motorsports celebrates the FD- RX-7 (1993-2002). Mazda Motorsports has collaborated with Rays CO. in Japan to get the ultimate FD RX-7 track-focused-wheel fitment to be available without having to order custom wheels. With the ZE-40 wheel, you can fit up to a 295/30/18 tire on all 4 corners of your FD RX-7. Depending on tire size selected, the fender rolling is highly suggested.  This setup works well on the FD RX-7 due to the chassis being designed around a square wheel & tire setup.  The FD RX-7 has the same track width front and rear along with the same wheel sizes on all 4 corners.  This just takes that approach to the max available fitment possible with the OEM body panels. Available in Gunmetal, Matte Black, and Silver. Center caps are optional.

Popular tire size options:

• 275/35/18
• 285/30/18
• 295/30/18

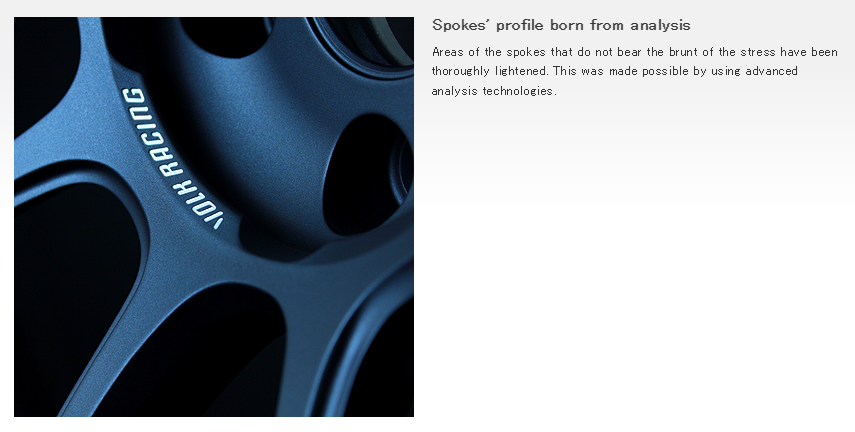

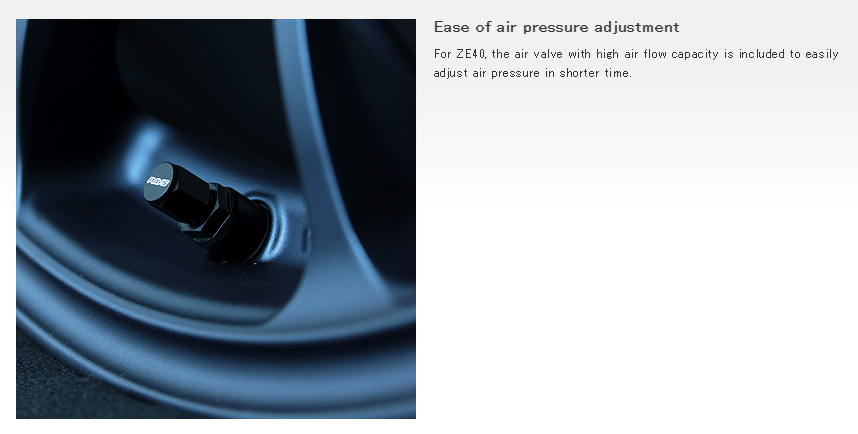

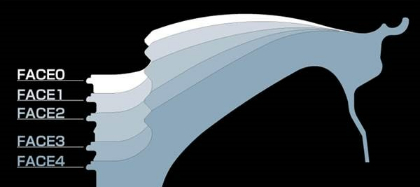

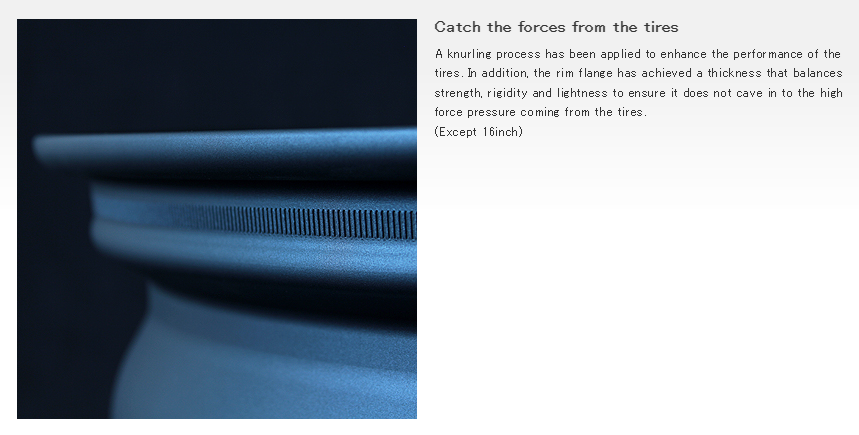

The ZE40 is a completely new wheel design with each of its 10 spokes featuring an aesthetic finish that also helps reduce weight. Those spokes will also feature 4 different concave faces, depending on the width and offset of the ZE40 you choose. The wheel center of the ZE40 incorporates a new overhang design for strength and looks. Detail touches on the Volk Racing ZE40 include machined logos and black high-speed air valves. The ZE40 barrel will include the anti-slip bead knurling learned from Formula 1 competition wheels.

Wheel specs:

• 18”x10”
• +50mm offset
• 5 x 114.3 bolt pattern
• 19 lb
• Hub bore 67.1mm (hub-centric fitment for the FD)

Face – 2 design clears big brake kits (Brembo & AP)
